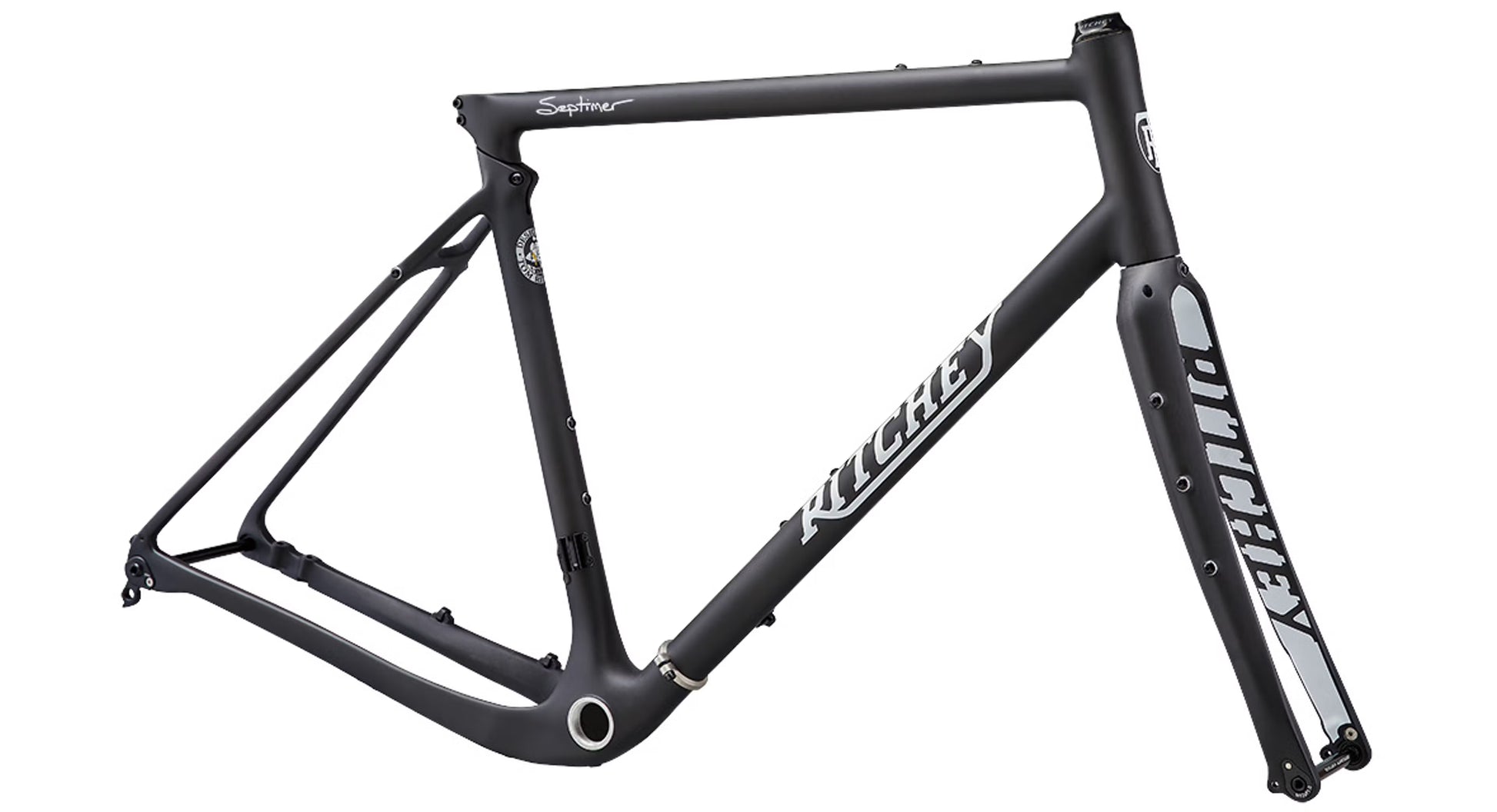

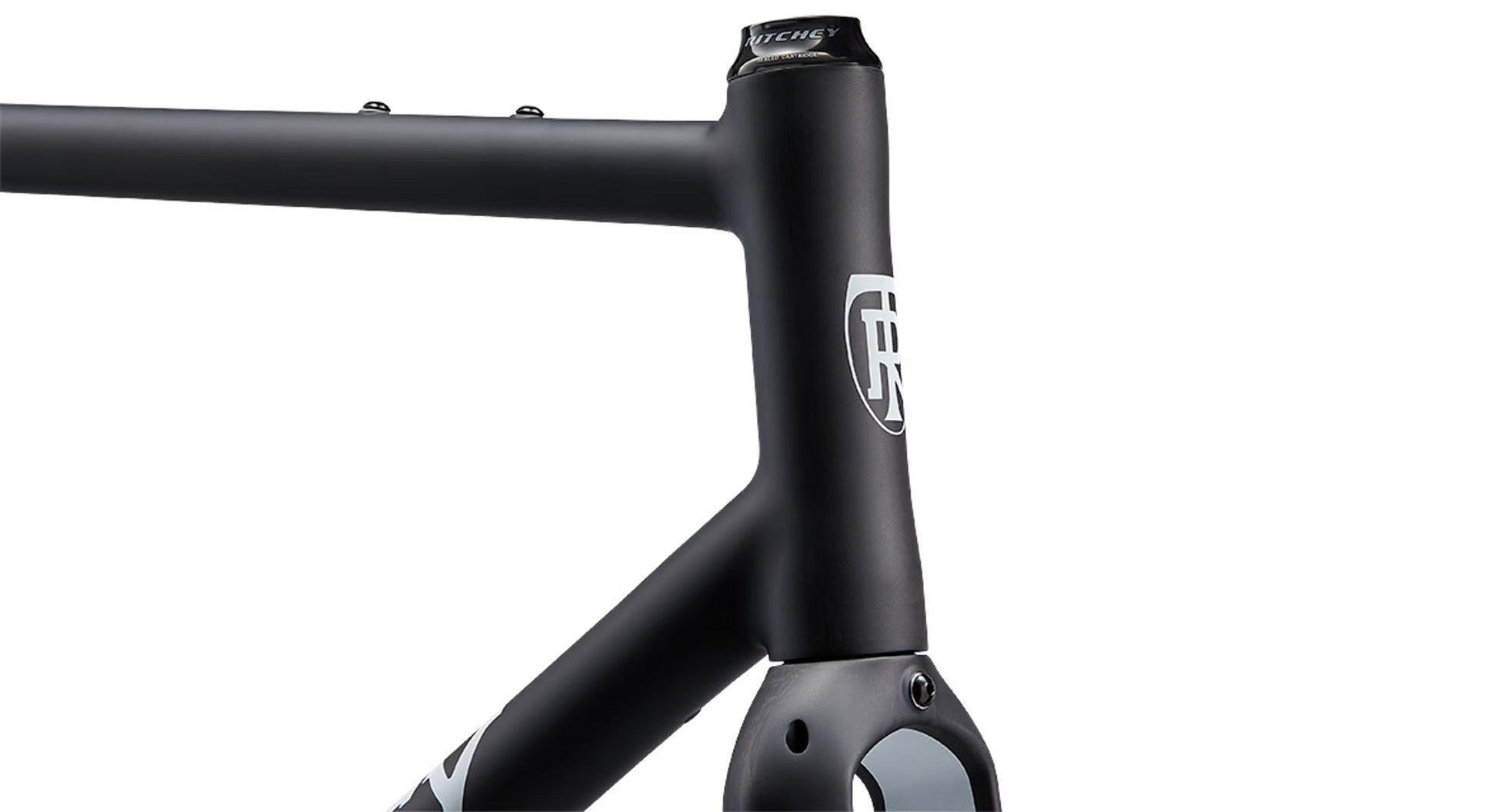

Named after the Septimer Pass, which stretches between the border of Switzerland and Italy, Ritchey’s Septimer spans Tom Ritchey’s concept of an all-road bike that doesn’t take sides. Tom designed this bike to be the one bike you’ll ever need, whether you’re uncovering stealthy new routes that have so far stayed hidden, or your need for adventure snaps the tether that’s kept you grounded until now.
To approach the pass from the south, Ritchey’s Septimer gives you a lightweight carbon fiber frame and fork — ideal for reaching its highest point. The road, which hasn’t changed much in a couple thousand years, can be overcome with 700 x 48c tires. To get there — or almost anywhere — Ritchey’s patented Break-Away system lets you easily and quickly disassemble your bike to fit into its own sturdy travel case. Once at your destination, the bike assembles with ease, allowing you to set off on your journey without wasting a moment. External cable routing also takes away some of the hassle of prepping your bike for traveling. Multiple mounts keep your gear within easy reach to keep the adventure in motion. Compatible with 1x or 2x cranksets for pedaling toward a distant destination or climbing an ancient pass.
Key Features:

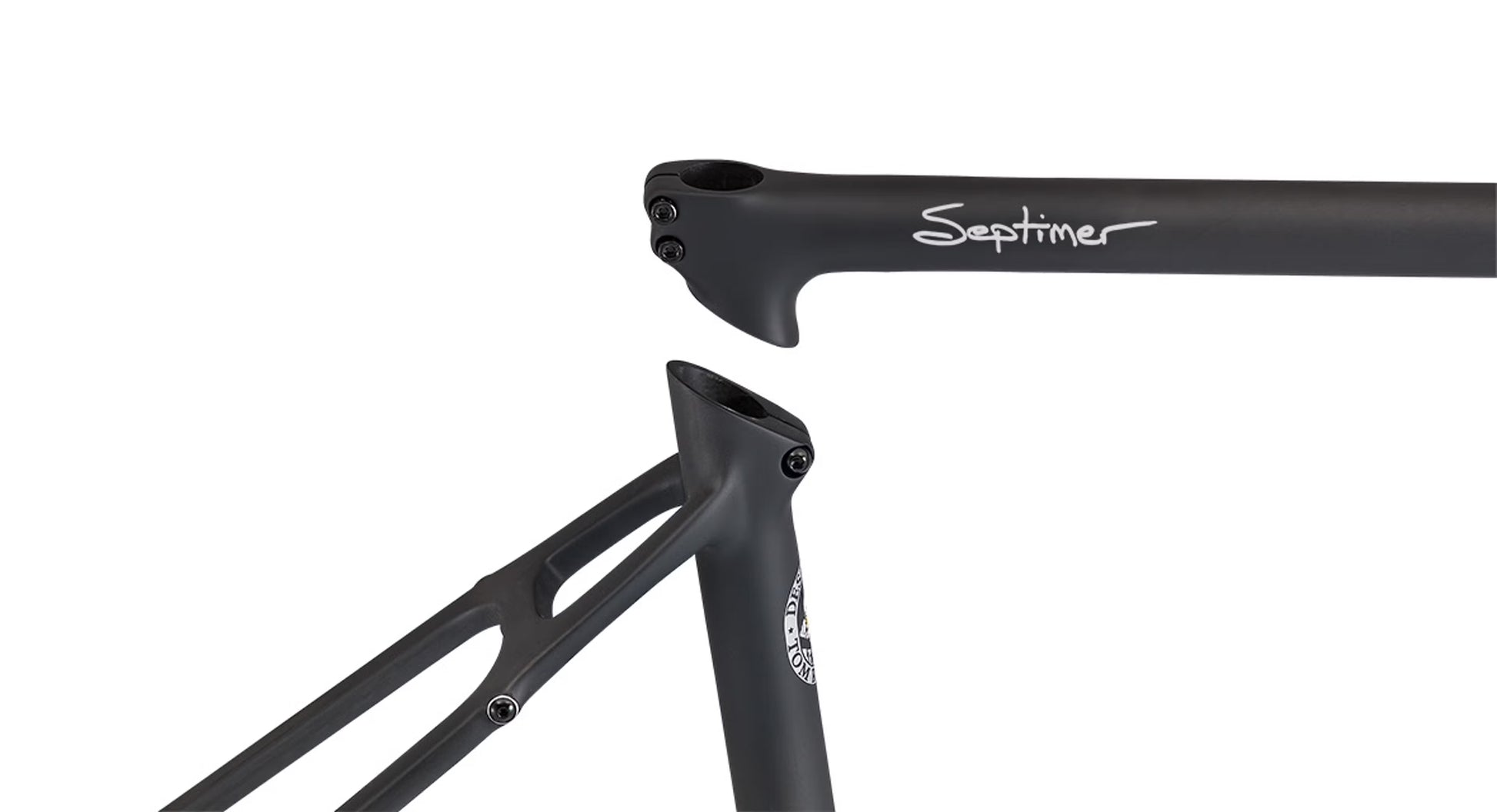

- Patented Ritchey Break-Away® design
- Materialcarbon fiber with stainless steel joints

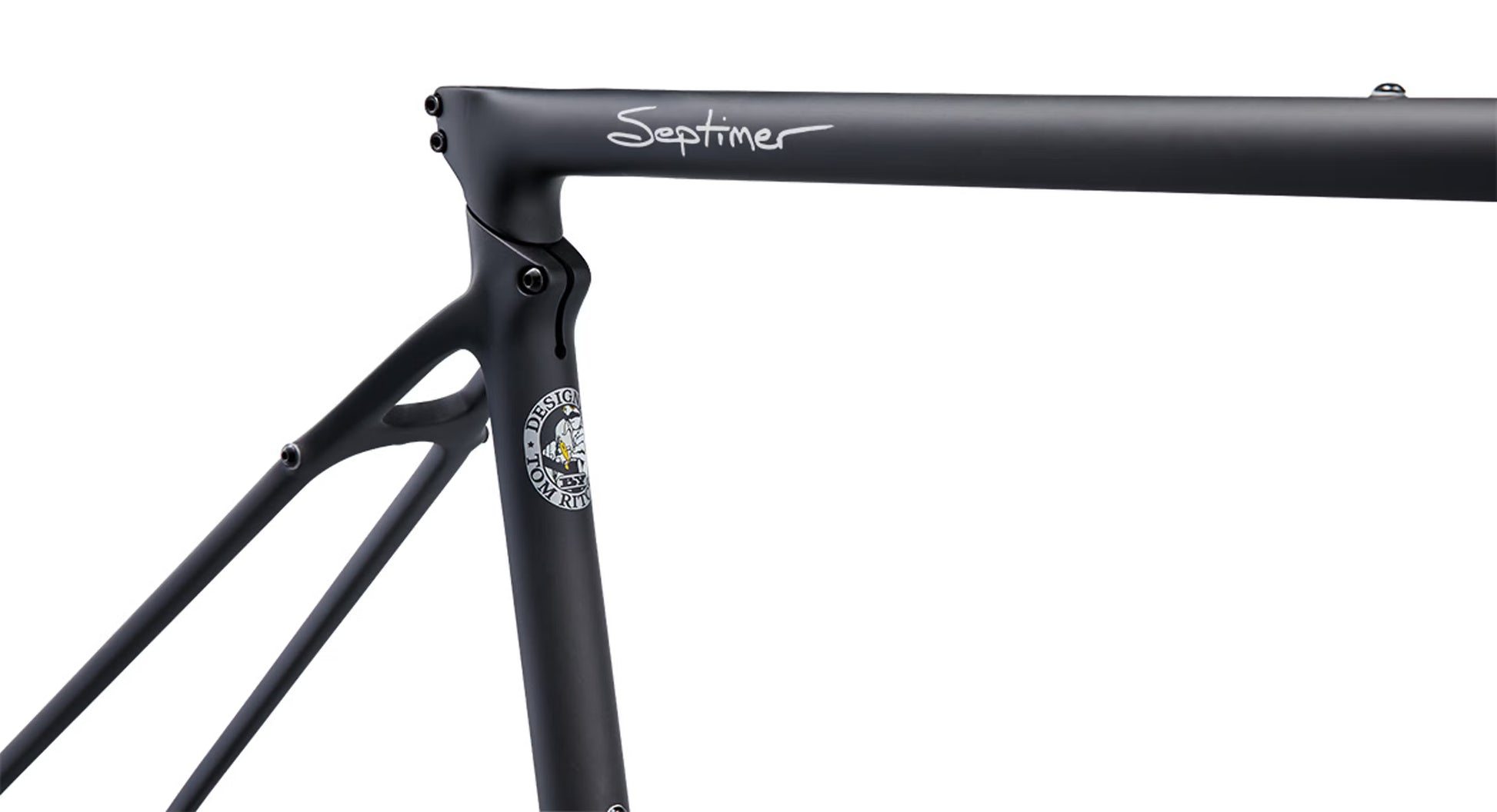

- 27.2mm seat tube with integrated seat collar (max torque setting: 5Nm)
Minimum seatpost insertion110mm
- Bottom bracket68mm - English threaded

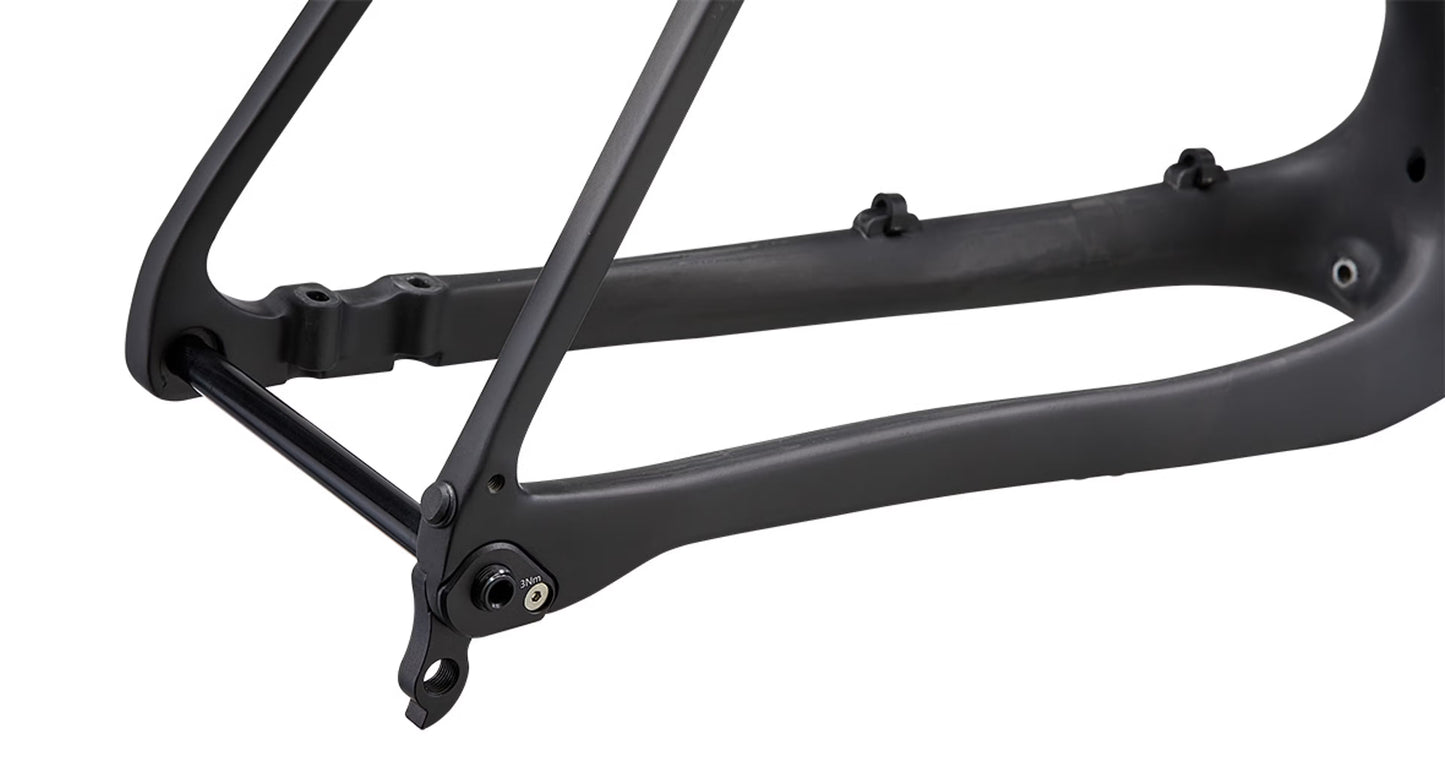

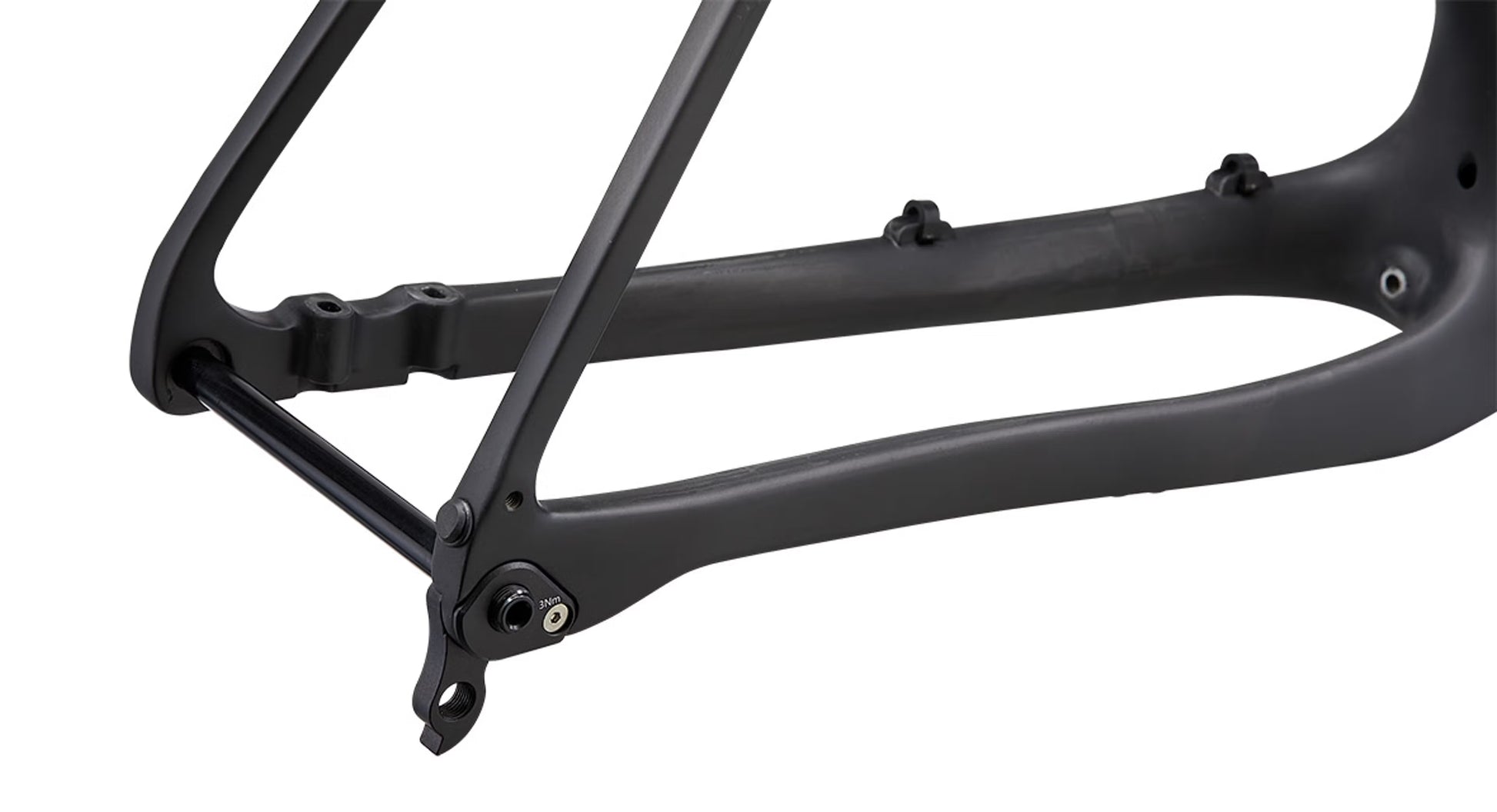

- 142mm spacing (12mm alloy thru-axle included)
- Can accommodate 1X or 2X chainrings
- Crankset min/max ring sizesingle 36 to 46t (chain line 49.7mm) - double 46/30t to
50/34t (chain line 47mm)
- Not compatible with Direct Mount standard and related components (T-Type derailleurs
and cassettes)
- Bottle cage mounts2
- Top tube bag mountsYes
- Rack and fender mounts
- External cable routing
- Stealth wire routing for semi-wireless Di2 groupsets (Only compatible with Shimano Di2
EW-SD300 wire for 12-speed)
- Replaceable derailleur hanger
- Removable front derailleur mount
- WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

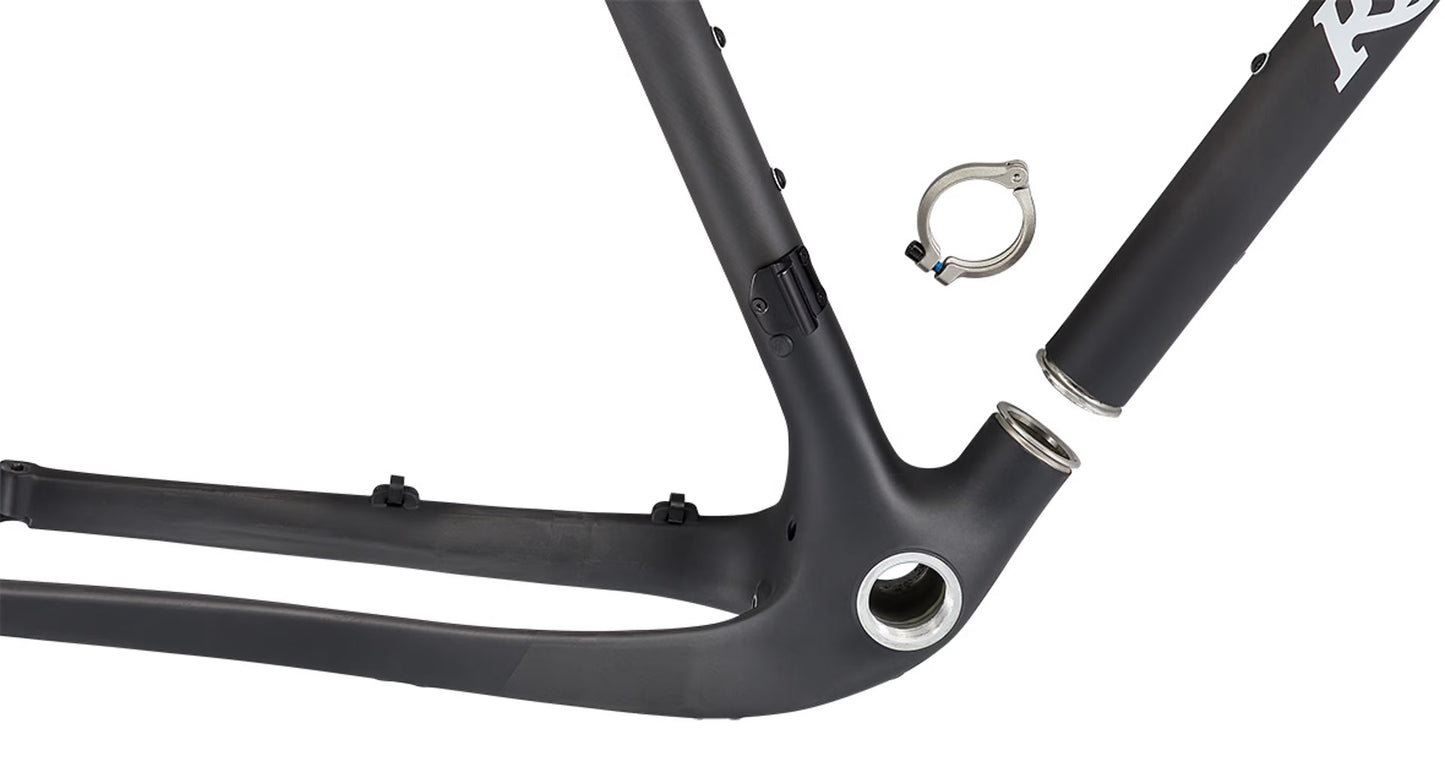

- Downtube hinge clamp, included
- Please Note: Stops/guides kit for mechanical groupsets available separately - Not
included with the frameset.
FORK
- Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
- 1-1/8" straight steerer with integrated 45-degree crown race
- Steerer length300mm
- Axle-crown393mm
- Rake/Offset50mm
- 100mm spacing (12mm alloy thru-axle included)
- 30mm maximum spacers below stem
- Fork max payload3kg per side
TIRE COMPATIBILITY
- Wheel and tire compatibility700 x 48c tire clearance (depending on tire/rim
manufacturer)
- Frame spacing 60mm
- Fork spacing 60mm
BRAKE COMPATIBILITY
- Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)
- Frame flat-mount bracket height20mm
- Frame equipped for external hydraulic hose
- Hydraulic brake compatible (please see brake manufacturer recommendation for
traveling with hydraulic brakes)
DETAILS
- Sizes S / M / L / XL
- Frame weight1,360g (size L - w/o thru-axle)
- Fork weight440g (uncut w/o thru-axle)
- ColorBlack & White
- Downtube Break-Away coupler torque: 5Nm (Do not lubricate clamp or clamping area).
Torque Key not included.

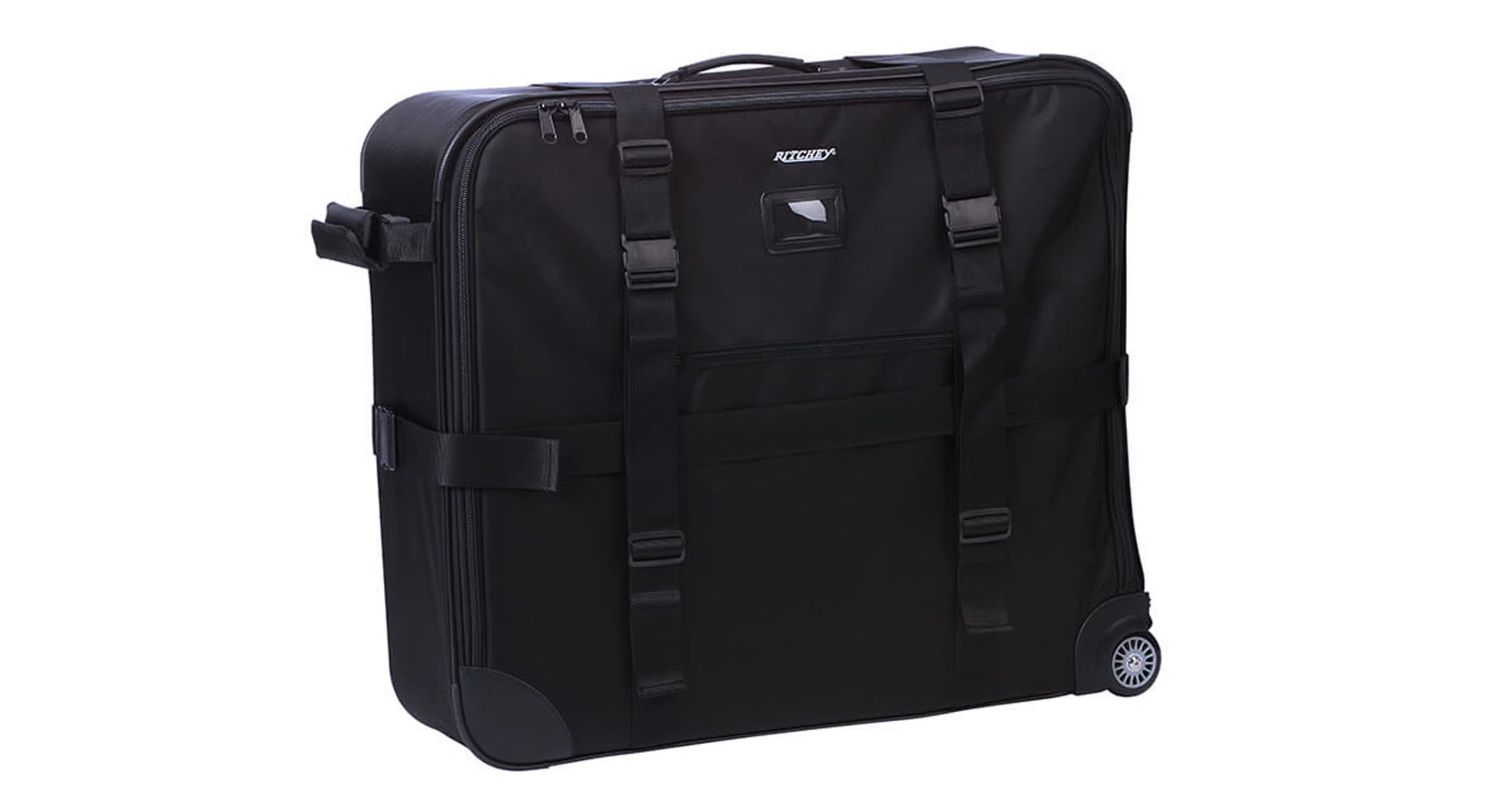

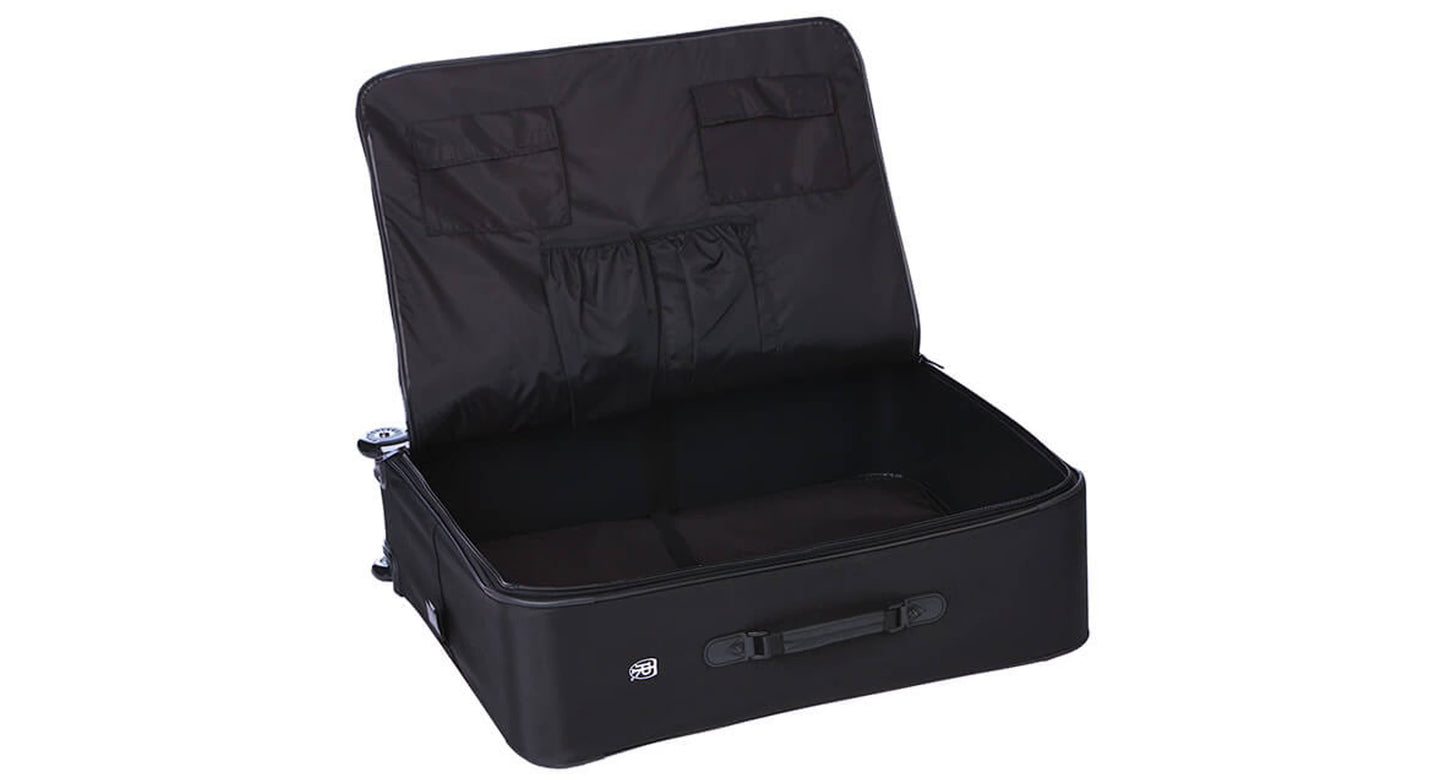

- Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/
wheels)
