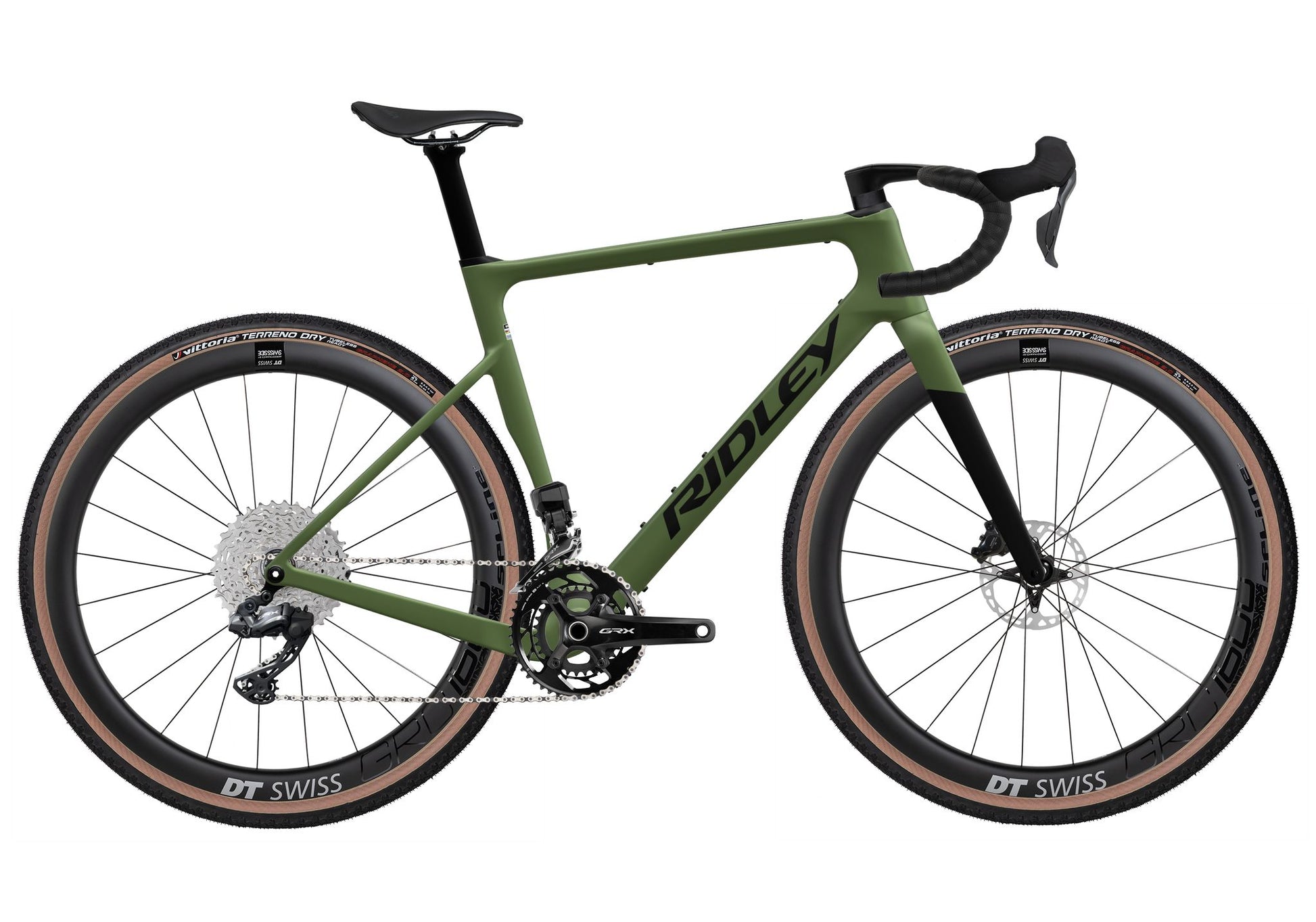

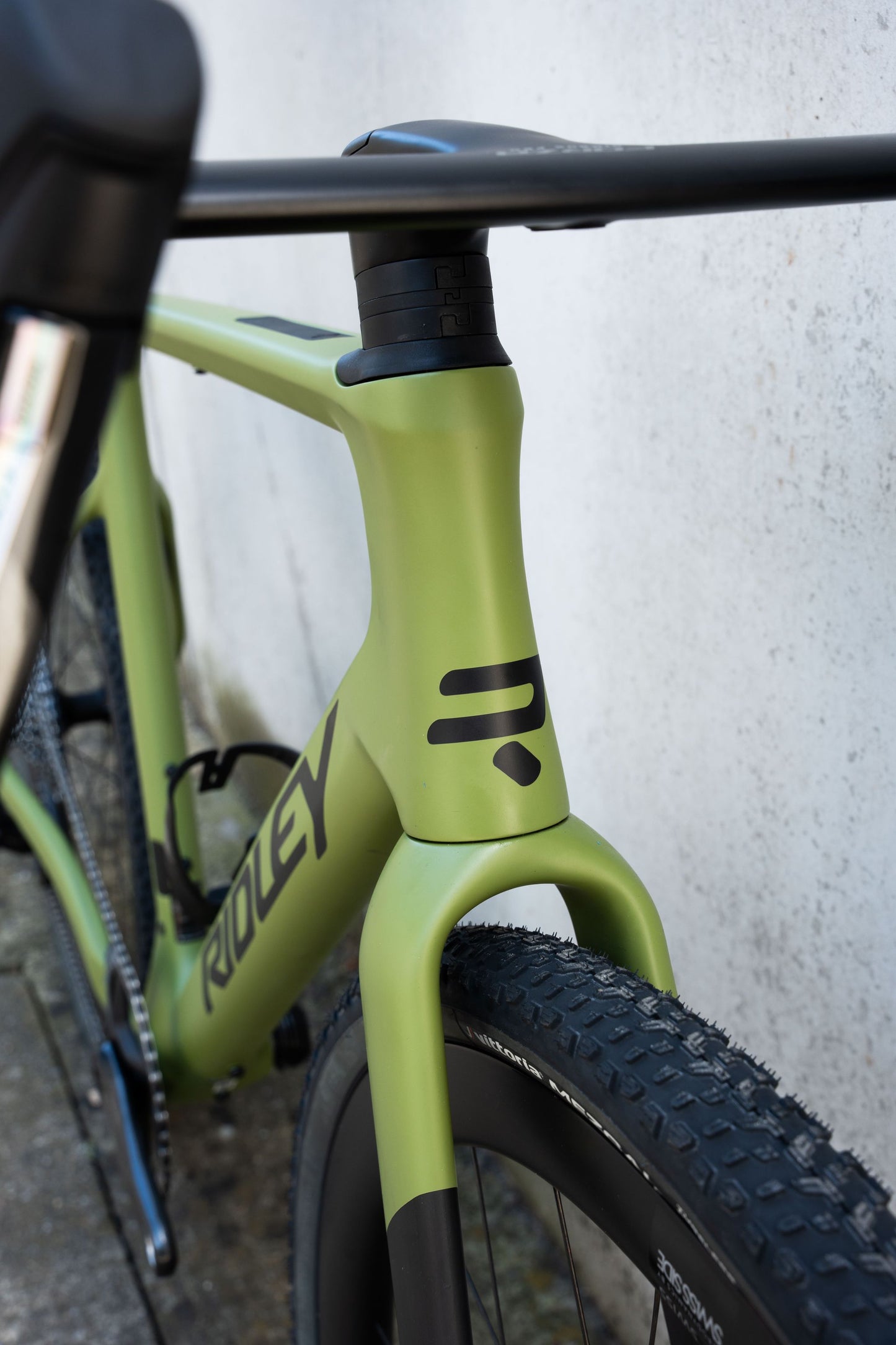

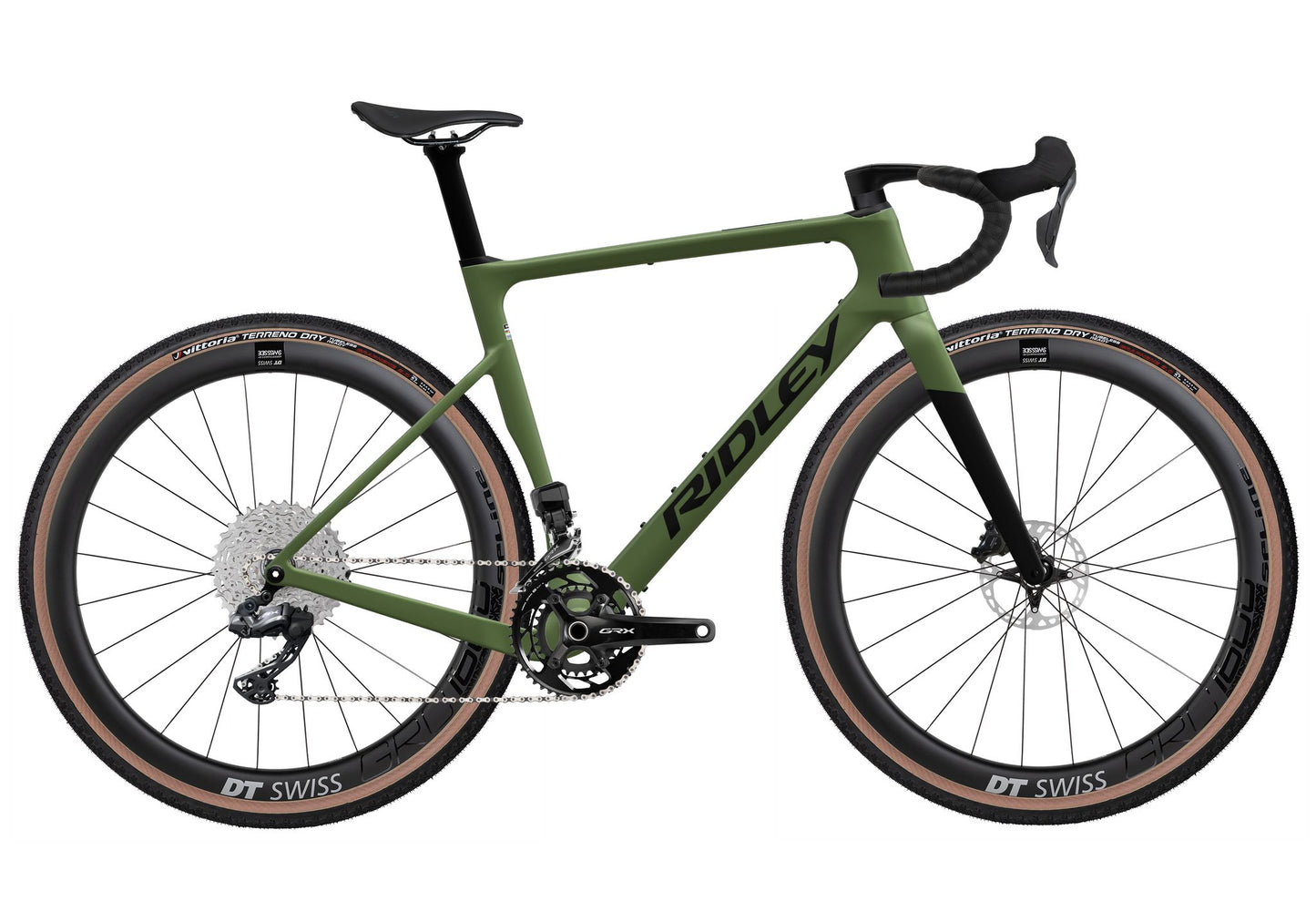

Ridley ASTR RS Gravel Bike | Crocodile Green | Shimano GRX DI2 2x12
Ridley ASTR RS Gravel Bike | Crocodile Green | Shimano GRX DI2 2x12
Couldn't load pickup availability
Ridley ASTR RS Gravel Bike
The ASTR RS is a performance-driven gravel bike developed for modern gravel racing. This is evident from its groundbreaking 52 mm tire clearance — a category-leading move that anticipates the growing trend toward wider tires. Gravel races are becoming increasingly rough, while riders are going faster than ever, placing new demands on the bike.
The Astr RS also features aero-optimized tube shapes and a fork with integrated diffuser, based on our Falcn RS aero-to-weight research. In addition, it has a confidence-inspiring geometry with high-speed stability in mind: longer wheelbase, a slacker head angle, and a lower bottom bracket.
Riders need to conserve more energy during the race. With optimized aerodynamics, greater comfort, lower rolling resistance from wider tires, and improved climbing performance thanks to the low weight, the Astr RS ensures riders reach the finale with more energy in the tank than their competitors.
*Call or send us an email if you would like to customize any of the specs*
Detailed Specifications:
| Frame | Ridley ASTR Carbon |
| Fork | ASTR Carbon |
| Material | Carbon |
| Groupset | Shimano GRX800 DI2 2x12 |
| Crank | Shimano GRX820 // 172,5mm // 48-31 |
| Cassette | Shimano Ultegra // 12s // 11-34 |
| Brakes | Shimano GRX800 |
| Front Derailleur | Shimano GRX Di2 // Braze-on |
| Rear Derailleur | Shimano GRX Di2 |
| Cockpit | Forza Nimbus Pro |
| Seatpost | Forza Aero // 6mm Offset // 400mm |
| Saddle | Selle Italia Novus Boost Superflow 3D // Carbon Rails // Black |
| Wheelset | DT Swiss GRC1600 // 42mm deep // 24mm internal width |
| Outer Tyre | Terreno T60 700x45c/Grav Brown-blk-blk G2.0 OEM HP |
| Max Tire Clearance 700c (*) | 47 mm (52mm with 1x Drivetrain) |
Key Features:
- Hidden Top Tube Mounts: Concealed mounting points on the top tube with flush-fitting covers.
- Integrated Cable Routing: Streamlined routing for mounting a rear light.
- UDH Hanger: SRAM's universal solution for all rear derailleurs
