ALAN Super Gravel Carbon Frameset | SG1 BLUE QUASAR

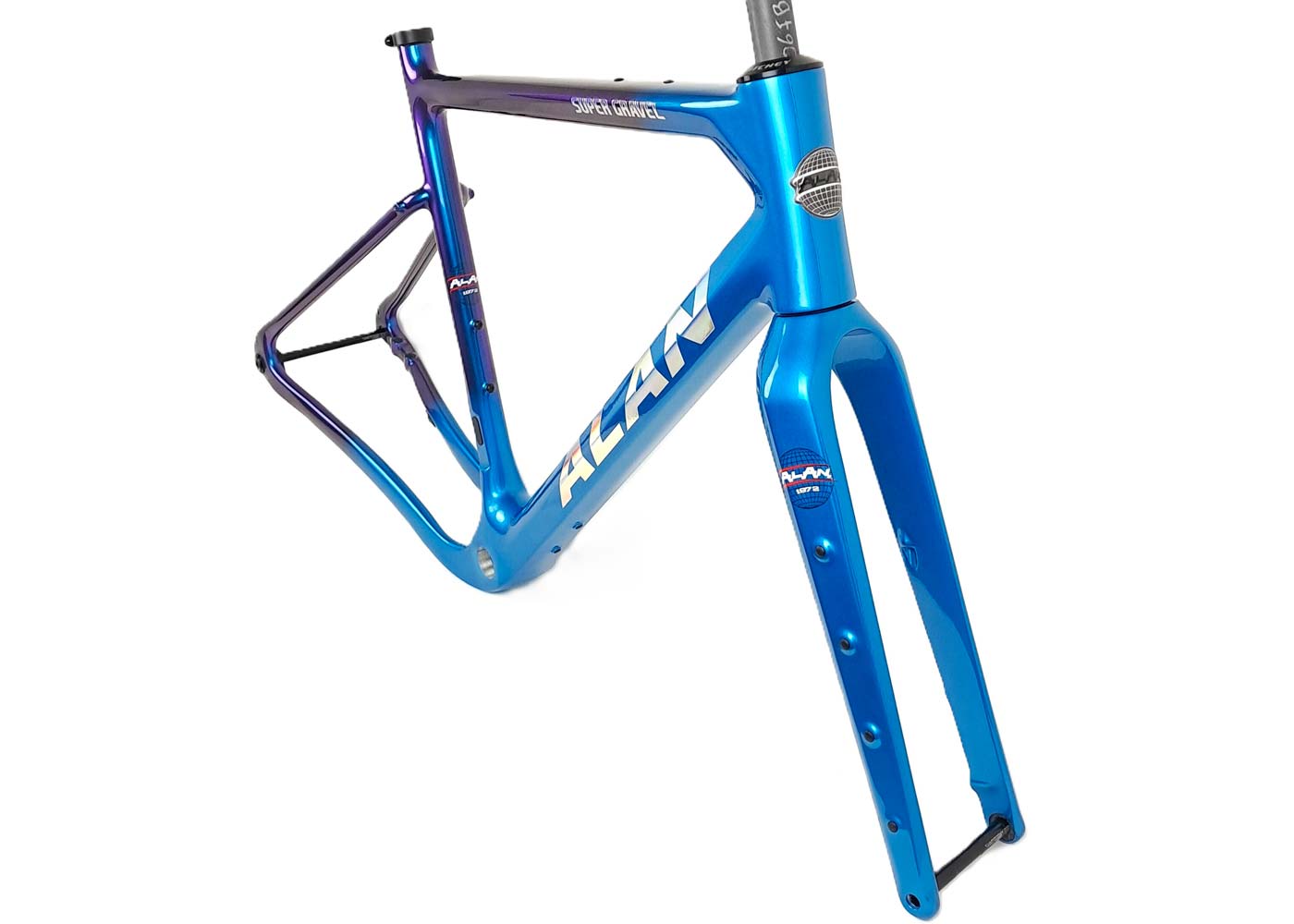

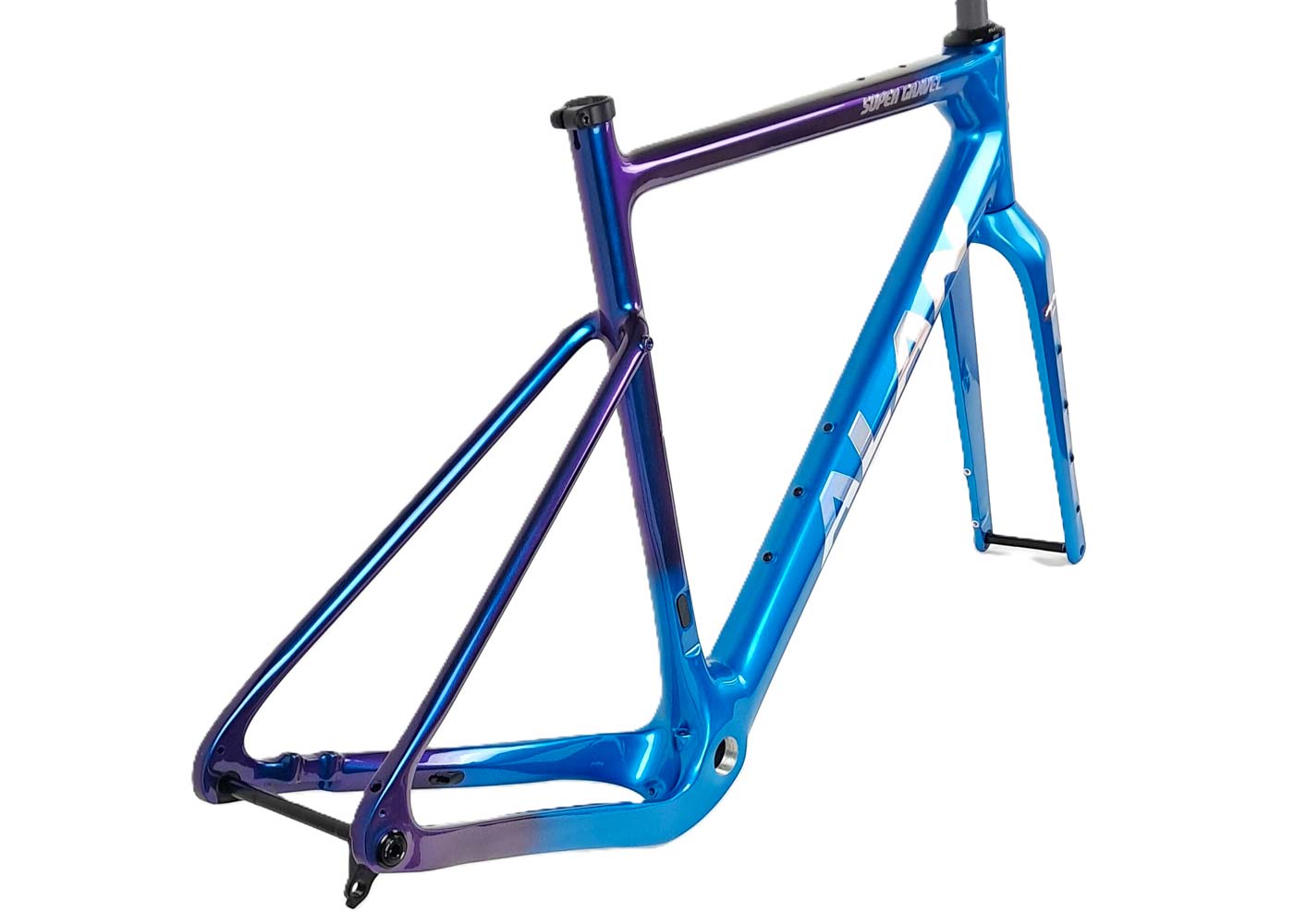

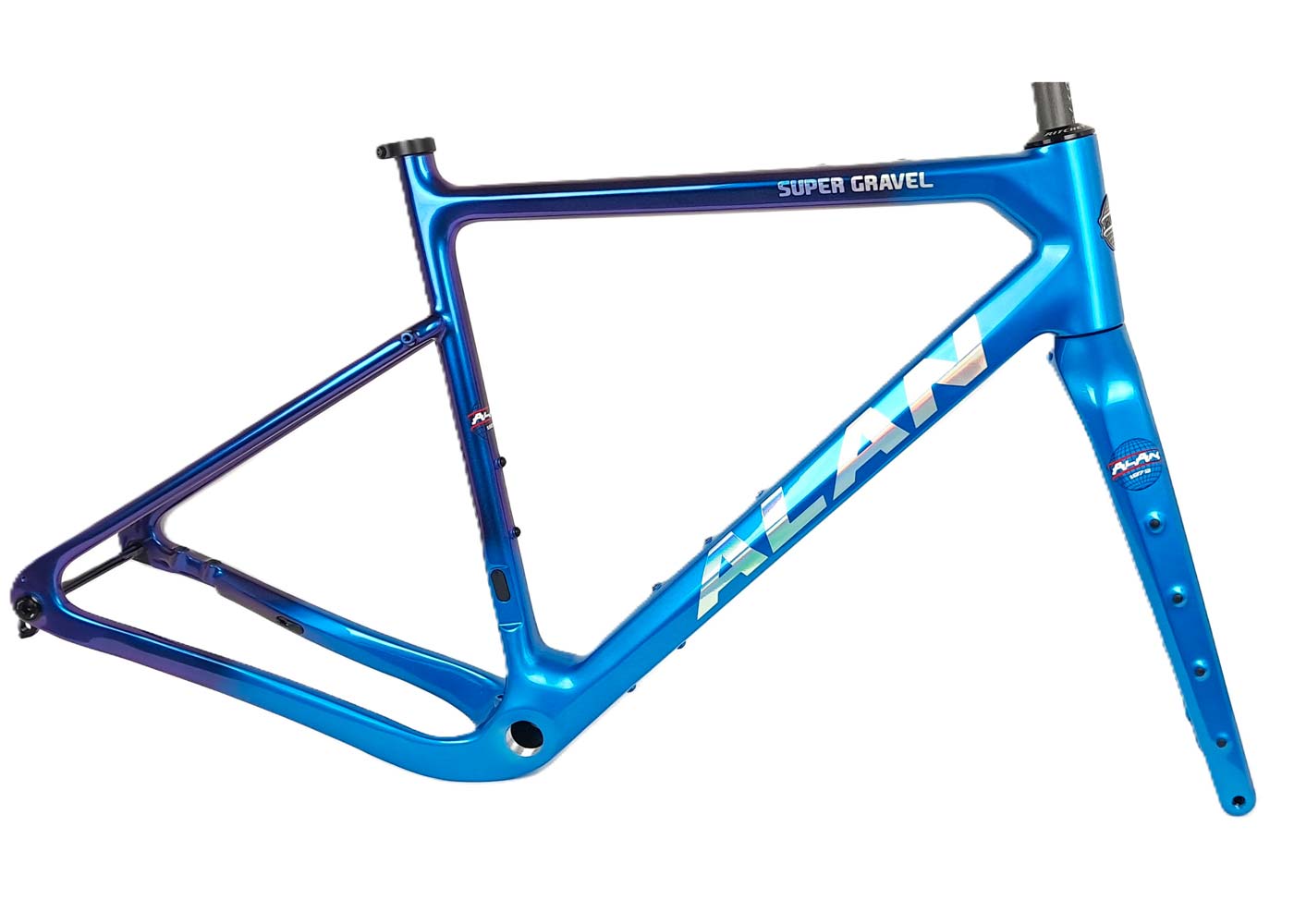

ALAN Super Gravel Carbon Frameset

The new Super Gravel is a versatile gravel bike, from full days in the saddle to long-distance gravel competitions.

The frameset has some technical solutions that reflect the evolution of gravel riding in recent years.

Made from high mod carbon fibre, it gives the optimal combination of low weight and outright strength for supreme performance on gravel. . It comes complete with a dropped chainstay for agile performance on rougher gravel terrain, fully integrated cable routing , UDH derailleur hanger, standard BSA threaded bottom bracket and a traditional seat post clamp, offering efficiency and convenience , many supports for bikepacking on frame and fork

ALAN frames are made with great effort by hand. We have some frame sets in stock, but delivery times can be up to 6 weeks.

Key Features:

• Monocoque carbon fork weighing 490g, with a tapered headtube (1”1/2 top - 1”1/2 bottom) for precise steering.
• Eyelets to support frame/fork mounted racks and mudguards
• 2 bottle mounts inside main triangle,1 accessory/bottle mount on underside of downtube
• 1 food bag mount on top tube, 4-pack mounts on each fork blade
• Removable front derailleur mount allows to assemble 2x or 1 x cranksets
• Flat mounts disc brake -rear t/axle  12x142mm – front t/axle 12x100
• Discs: 160 mm rear – 180 mm front. Bottom bracket  BSA 1.37X24T 68 mm
• Seat tube ID 27,2 mm. Max tire size 700x45
• Tapered headtube 1”1/2 top - 1”1/2 bottom -Integrated Deda DCR headset included
